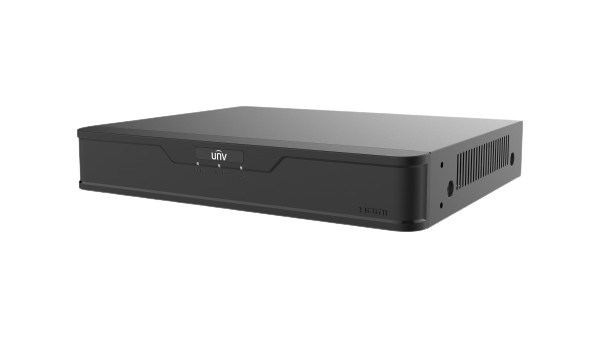

XVR301-108G3 Series
Original price was: ₹3,500.00.₹3,294.00Current price is: ₹3,294.00.
1 HDD 4-Ch 1U Digital Video Recorder
• Support H.265/H.264 video formats
• Support audio over coaxial cable (only for TVI cameras)
• Control the dual-light of UNV analog cameras under TVI
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 4/8/16-channel BNC input
• Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols
10 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Product Information
| Specification | Details |
|---|---|
| IP Video Input | 4-ch |
| Analog Video Input | 8-ch, BNC |
| Max IP Video Input | 8-ch |
| Supported Analog Camera Types | AHD: 5MP@12.5fps, 1080P@30fps, 720P@30fps; TVI: 5MP@12.5fps, 1080P@30fps, 720P@30fps; CVI: 4MP@15fps, 1080P@30fps, 720P@30fps; CVBS supported |
| RCA Audio Input | 1-ch |
| HDMI Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
| Recording Resolution | 5MP Lite / 1080P Lite / 720P / D1 |
| Recording Frame Rate | 5MP Lite@6fps, 1080P Lite@12fps, 720P@12fps |
| Sub Stream | D1@6fps, D1@12fps |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 4×5MP Lite@6, 4×1080P Lite@12fps; IP: 1×4MP@30, 2×1080P@30 |
| Two-way Audio | 1-ch, RCA |
| Snapshot Support | FTP/Event snapshot: 8-ch, up to 704×576; Schedule snapshot not supported |
| Incoming Bandwidth | 32Mbps (Up to 40Mbps after analog conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Browser Support | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart Functions | Ultra Motion Detection (UMD), 4-ch UMD |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low, HDD Full, Recording/Snapshot Abnormal |
| GUI Languages | 20 Languages including English, French, German, Arabic, Russian, etc. |
| SATA | 1 SATA interface |
| HDD Capacity | Up to 16TB |
| Network Interface | 1 RJ45 10M/100M Ethernet |
| USB | 2 × USB2.0 |
| RS485 | N/A |
| Power Supply | DC 12V / 2A |
| Working Temperature | -10°C to 55°C |
| Working Humidity | ≤ 90% RH |
| Power Consumption | ≤ 8W |
| Weight | ≤ 1.1 Kg |
| Dimensions | 260 × 226 × 47 mm |
