NVR516-64
Original price was: ₹21,300.00.₹20,000.00Current price is: ₹20,000.00.

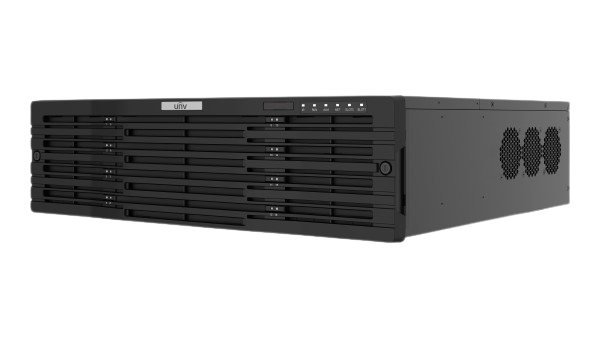

16 HDDs 64-ch 3U Network Video Recorder
• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Redundant power supply optional
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• Support 2 miniSAS Interfaces
• Support 12V power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
10 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Product Information
| Category | Specification | Details |
|---|---|---|
| Decoding | Decoding Format | Ultra 265, H.265, H.264 |
| Decoding | Decoding Capability | 4 × 12MP@20, 4 × 4K@30, 16 × 1080P@30, 36 × 720P@30, 64 × D1 |
| Decoding | Capability Description | Resolution per channel cannot exceed 4096 pixels in length or width |
| Decoding | Audio Compression | G.711A, G.711U |
| Network | Incoming Bandwidth | 384 Mbps |
| Network | Outgoing Bandwidth | 384 Mbps |
| Network | Remote Users | 128 |
| Network | Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Network | Browser Support | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | IP Video Input | 64-ch |
| Video/Audio Input | BNC Audio Input | 1-ch |
| Video/Audio Output | HDMI Output | 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz (HDMI audio output not supported) |
| Video/Audio Output | VGA Output | 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video/Audio Output | BNC Audio Output | 1-ch |
| Video/Audio Output | Liveview Display | VGA: 1/4/6/8/9/16/25/36HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64 |
| Video/Audio Output | Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Audio | Two-way Audio | 1-ch, BNC (using audio input/output) |
| Snapshot | FTP/Schedule/Event Snapshot | Full-channel snapshot (max 4000 × 3000 video resolution, snapshot resolution same as video) |
| Recording | Recording Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Recording | Synchronous Playback in Local | 16-ch |
| Smart | VCA Detection by IPC | Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), UMD, Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke & Fire Detection), People Counting, Video Metadata, Traffic Monitoring |
| Smart | VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| Smart | Smart by IPC | All channels (up to 32 images/s total): Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alarm | Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low, HDD Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded |
| GUI | GUI Language | 38 languages including English, French, German, Spanish, Arabic, Japanese, Korean, Persian, etc. |
| Storage | SATA | 16 SATA Interfaces |
| Storage | Capacity | Up to 16TB per HDD |
| Storage | Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Storage | Hot Swap | Supported |
| Interface | Network Interface | 4 × RJ45 10/100/1000 Mbps Ethernet + 2 × 1000M SFP Ethernet |
| Interface | USB | Rear panel: 4 × USB3.0 |
| Interface | RS485 | 1 |
| Interface | RS232 | 1 |
| Interface | Alarm In | 24-ch |
| Interface | Alarm Out | 8-ch |
| Interface | eSATA | 1 |
| Interface | miniSAS | 2 |
| Interface | Power Output | 12V |
| Power | Power Supply | AC 100–240V |
| Power | Power Switch | Supported |
| Power | Redundant Power Supply | Supported |
| Environment | Working Temperature | -10°C to 55°C |
| Environment | Working Humidity | ≤ 90% RH |
| Environment | Power Consumption | ≤ 50W (without HDD) |
| Physical | Weight | ≤ 10 kg |
| Physical | Dimensions | 482 × 477 × 131 mm |
| Certification | Certifications | CE, FCC, UL, RoHS, WEEE |
