IPC322LB-SF28K-A

IPC322LB-SF28K-A

Original price was: ₹3,650.00.Current price is: ₹3,250.00.

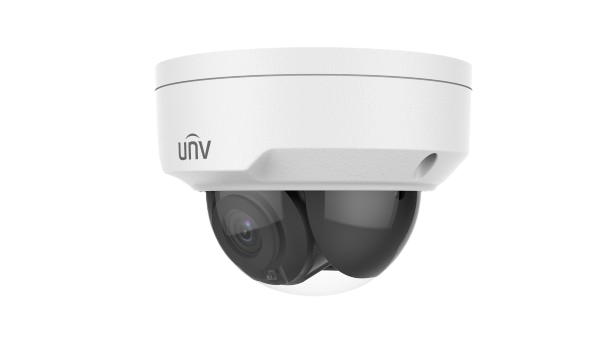

2MP Fixed IR Dome Network Camera
• High quality image with 1080P, 1/2.9″ CMOS sensor
• 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30 m (98.4 ft) IR distance
• Day/night functionality
• 2D/3D DNR (digital noise reduction)
• Supports microSD card
• DC 12 V, PoE (IEEE 802.3af) power supply
• IP67 protection
• IK10 protection
• 2-axis

10 in stock

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IPC322LB-SF40K-A Categories: , , Tag:

Description

Product Information

Specification Details
Model IPC322LB-SF28K-A
Maximum Resolution 2 MP
Sensor 1/2.9″ CMOS
Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR On
Day/Night Mode IR-cut Filter with Auto Switch (ICR)
Shutter Speed Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 355°, Tilt: 0° ~ 75°
S/N Ratio >52 dB
WDR DWDR
Lens Focal Length 2.8 mm
Iris Type Fixed
Aperture F2.0
Horizontal Field of View 101.1°
Vertical Field of View 56.5°
Diagonal Field of View 117°
Detection Distance 45.0 m (147.6 ft)
Observation Distance 18.0 m (59.1 ft)
Recognition Distance 9.0 m (29.5 ft)
Identification Distance 4.5 m (14.8 ft)
Supplemental Light IR
IR Range 30 m (98.4 ft)
IR Wavelength 850 nm
IR Control Auto / Manual
Video Compression Ultra 265, H.265, H.264
H.264 Profile Baseline, Main, High
Main Stream 1080P (1920 × 1080) @ 30 fps, 720P (1280 × 720) @ 30 fps
Sub Stream D1, 640 × 360, 2CIF, CIF @ 30 fps
Video Bit Rate 128 Kbps – 6144 Kbps
U-code Supported (Main Stream)
OSD Up to 4 OSDs
Privacy Mask Up to 4 Areas
ROI Supported
Video Streams Dual Streams
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D / 3D DNR
Smart IR Supported
Image Flip Normal, Vertical, Horizontal, 180°
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Motion Detection Supported
General Functions Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Edge Storage MicroSD Card up to 128 GB
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SSL/TLS
ONVIF Support Profile S, G, T
API / SDK Supported
Maximum Users 32 Users
User Levels Administrator, Common User
Security Features Password Protection, Strong Password, HTTPS Encryption, Export Logs, RTSP/HTTP Digest Authentication, WSSE Authentication
Client Software UNV-Link, UNV-Link Pro, EZStation
Browser Support IE 10+, Chrome 45+, Firefox 52+, Edge 79+ (Plugin Required)
Plugin-Free Browsers Chrome 57+, Firefox 58+, Edge 16+
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Microphone N/A
Built-in Speaker N/A
Wi-Fi N/A
Network Port 1 × RJ45 10/100 Mbps Ethernet
Video Output N/A
EMC Certifications CE-EMC, FCC
Safety Certifications CE LVD, CB, UL/CUL
Environmental Certifications RoHS, WEEE
Protection Rating IP67, IK10
Power Supply DC 12V ±25%, PoE (IEEE 802.3af)
Power Consumption Max. 5.0 W
Power Connector Ø5.5 mm Coaxial Power Plug
Dimensions Ø109 mm × 81 mm (Ø × H)
Weight 0.36 kg (0.79 lb)
Material Metal + Plastic
Operating Temperature -30°C to 60°C
Operating Humidity ≤95% RH (Non-Condensing)
Storage Temperature -30°C to 60°C
Storage Humidity ≤95% RH (Non-Condensing)
Surge Protection 4 KV
Reset Button N/A
Web Client Language English
