CP-UVR-3201K2-I3-V2
Original price was: ₹28,000.00.₹25,350.00Current price is: ₹25,350.00.

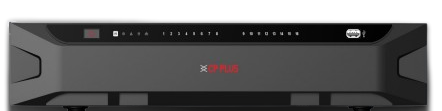

32 Ch. 5MP Digital Video Recorder
- Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
- Up to 8 channels video stream (analog channel) Perimeter Protection
- HDCVI/AHD/TVI/CVBS/IP video inputs
- Instastream, H.265 dual-stream video compression
- Up to 16 channels video stream (analog channel) SMD Plus
- Up to 2 channels video stream (analog channel) human face recognition
- Support 2 SATA HDDs up to 10TB Each, 2 USB Ports
- 1 HDMI / 1 VGA simultaneous video output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro Lite
10 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Product Information
| Feature | Specification |
|---|---|
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 32 channels |
| Camera Input | CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 2MP@25/30fps, 1MP@50/60fps, 1MP@25/30fps |
| Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto detect |
| Two-way Talk | Support |
| User Interface | Web, Local GUI |
| Perimeter Performance (AI by NVR) | Advanced Model: 2 channels, 10 IVS for each channelGeneral Model: 8 channels, 10 IVS for each channel |
| Video Output | 1 × HDMI, 1 × VGA, 1 × TV |
| VGA Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| HDMI Resolution | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Face Detection Performance (AI by NVR) | 2 channels |
| Video Streaming | Main Stream:• 5MP Mode: 4 channels at 5MP@(1–6fps), remaining channels at 5M-N@(1–12fps)• 5M-N Mode: All channels at 5M-N@(1–12fps); 4M-N & 1080P@(1–15fps); 1080N, 720P, 960H, D1, CIF@(1–25/30fps)Sub Stream: D1, CIF@(1–15fps) |
| Face Attributes | Gender, Age Group, Glasses, Expressions, Face Mask, Beard |
| Face Database Capacity | Supports up to 10 face databases with 10,000 face images in total. Each face image can store Name, Gender, Birthday, Address, Certificate Type, Certificate Number, Country/Region, and State. |
| SMD Plus (AI by NVR) | 16 channels with secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain, and lighting changes |
| Face Recognition Performance (AI by NVR) | 2 channels |
| TV Output | 1 channel |
| Network Mode | Single-address mode |
| Stream Capability | Dual-stream |
| Video Display Split | 1 / 4 / 8 / 9 / 16 / 25 / 36 |
| Video Bit Rate | 32 Kbps – 6144 Kbps |
| Audio Bit Rate | 64 kbps |
| Audio Input | 1-channel RCA, 32-channel BNC |
| Audio Output | 1-channel RCA |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| Video Compression | Instastream, H.265, H.264+, H.264 |
| Hard Disk | 2 SATA ports, up to 16 TB capacity for each disk (maximum HDD capacity varies with environment temperature) |
| Record Mode | General, Motion Detection, Intelligent, Alarm, POS |
| Disk Group | Support |
| Audio Sample Rate | 8 kHz, 16-bit per channel |
| General Alarm | Motion Detection, Video Loss, Tampering |
| Anomaly Alarm | No Disk, Storage Error, Disk Full, Camera Offline, IP Conflict, MAC Conflict |
| Intelligent Alarm | Face Detection, Face Recognition, Perimeter Protection |
| Alarm Linkage | Record, Snapshot (Panoramic), IPC External Alarm Output, Access Controller, Voice Prompt, Buzzer, Log, Preset, Email |
| Recording Playback | 1 / 4 / 9 / 16 Channels |
| Playback Mode | Instant Playback, General Playback, Event Playback, Tag Playback, Smart Playback (Face & Motion Detection) |
| Interface Ports | 2 × USB Ports (1 × Front USB 2.0, 1 × Rear USB 3.0), 1 × RS485 Port |
| Ethernet | 1 × RJ-45 (10/100/1000 Mbps Ethernet Port) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, ONVIF 22.12 (Profile T, Profile S, Profile G), CGI, SDK |
| Backup Mode | USB Device / Network |
| Smart Phone Support | iPhone, iPad, Android Phone |
| Supported Browsers | Chrome, Internet Explorer (IE), Firefox |
| Power Supply | DC 12V, 5A |
| Power Consumption | < 16 W |
| Operating Temperature | –10°C to +55°C (14°F to +131°F) |
| Operating Humidity | 10%–90% RH |
| Dimensions | 375.0 × 289.4 × 53.0 mm |
| Weight | 1.90 kg |
